In probing the galaxy for knowledge about our universe and it's origins, humanity has investigated various possibilities for enabling human habitation beyond Earth. Recent discoveries of water and water-ice in our solar system, such as water deposits on the Moon and Mars, give great promise to uncovering the presence of life forms as we understand them.  As water is the baseline resource for future outposts on a number of extra-terrestrial carbon-bodies, NASA has adopted a “follow the water” approach towards exploration. As such, water, the essential building block of life, is our Team’s primary material resource in the formation of the ICE HOUSE habitat design. Given the predicted abundance of water in certain areas on Mars, our approach takes full advantage of its properties as an indigenous material that acts both as a life-force to sustain a human and plant ecosystem, and, when 3-D printed, as our primary fabrication material.

Celebrating Light & Visual Connection

Celebrating Light & Visual Connection

The architecture of ICE HOUSE celebrates the presence of a human habitat as a beacon of light on the Martian surface. The design emerged from an imperative to bring light to the interior and to create visual connections to the landscape beyond, allowing the mind as well as the body to thrive. While scientists have experimented with what could potentially be synthetic replacements for sunlight, artificial substitutes do not hold nearly the same circadian variance or ability to balance a crew’s mental and physical health as does experiencing the sun’s actual and unmediated daily cycles. The water ice counteracts the traditional danger of living above ground by serving as a radiation barrier, offsetting fears of solar exposure that have, until now, projected Martian architecture into a dark underworld—buried beneath a regolithic surface that is believed to contain perchlorates, gypsum and other substances hazardous to human life.



READ MORE about the potential hazards of percholates in the Martian soil.

Water as a Radiation Shield

Water as a Radiation Shield

By taking advantage of water-ice’s ability to filter the sun’s rays and protect against radiation, ICE HOUSE prioritizes a life above ground and celebrates the human presence on the planetary surface. The semi-translucent exterior shell reintroduces the terrestrial concept of interior-to-exterior gradients, challenging common assumptions that extraterrestrial habitats require visually impenetrable barriers which divorce the interior from the surrounding terrain. The heart of the structure, the living quarters, is strictly interior, benefiting from the protection of redundant pressure envelopes. As one moves outward towards the radiation-barrier ice perimeter, there is a transition towards integrated plant life and vistas onto the Martian landscape, integrating the outdoors with the spatial environment.



READ MORE about the properties of water ice in absorbing radiation and allowing the transmittance of visible light.

A Vertical Habitat

A Vertical Habitat

The vertically oriented lander, which contains the mechanical services of the habitat, inherits the likely orientation of the crew’s (MTV) Transit Habitat to ease the crew’s adjustment to life on the Martian surface. The habitat’s stacked levels organize core programs by activity within the lander, introducing a spectrum of private to communal interior spaces. Interior efficiency creates sizable storage pockets at the base of the lander to house both the bots as well as the four Environmental Control and Life Support Systems (ECLSS). Once the lander has deployed the inflatable ETFE membrane, pre-fabricated bridges unfold from within the lander, creating ‘pockets’ for inserted program. A spiral stair at the core of the lander provides circulation to the upper levels of the habitat, while simultaneously offering the crew a means for exercise when ascending levels.

LEVEL ONE

LEVEL ONE

1A. Airlock Vestibule
1B. Entry Level, Rover Connection
1C. Intermediate Containment Zone

Intermediate Zone

Intermediate Zone

Thermally separated from the habitat interior, the occupiable “front yard” pocket just inside the outer shell provides a truly unique protected neutral zone that is not entirely interior or exterior; it enables the astronauts to experience the “outside” without ever donning an EVA suit. This interstitial zone space demonstrates a new, liberating and revolutionary definition of living extra-terrestrially—one that celebrates the novelty and wonder of living on Mars. Additional light qualities, including alternating color therapies, are achieved via robotic printing of the shell’s surface to create a “Fresnel lens” effect, refracting and concentrating the light within the interior surface of the domed structure.

The lander’s yard exists where a secondary, semi-independent shell of ice peels away from the exterior shell. The protective redundancy of the double skin creates two layers of space between the ETFE membrane and the lander, that while sharing a common pressure boundary, also creates a distinct temperature and air make-up zone. This creates a hereto-unimagined plant filled green courtyards experience on Mars.

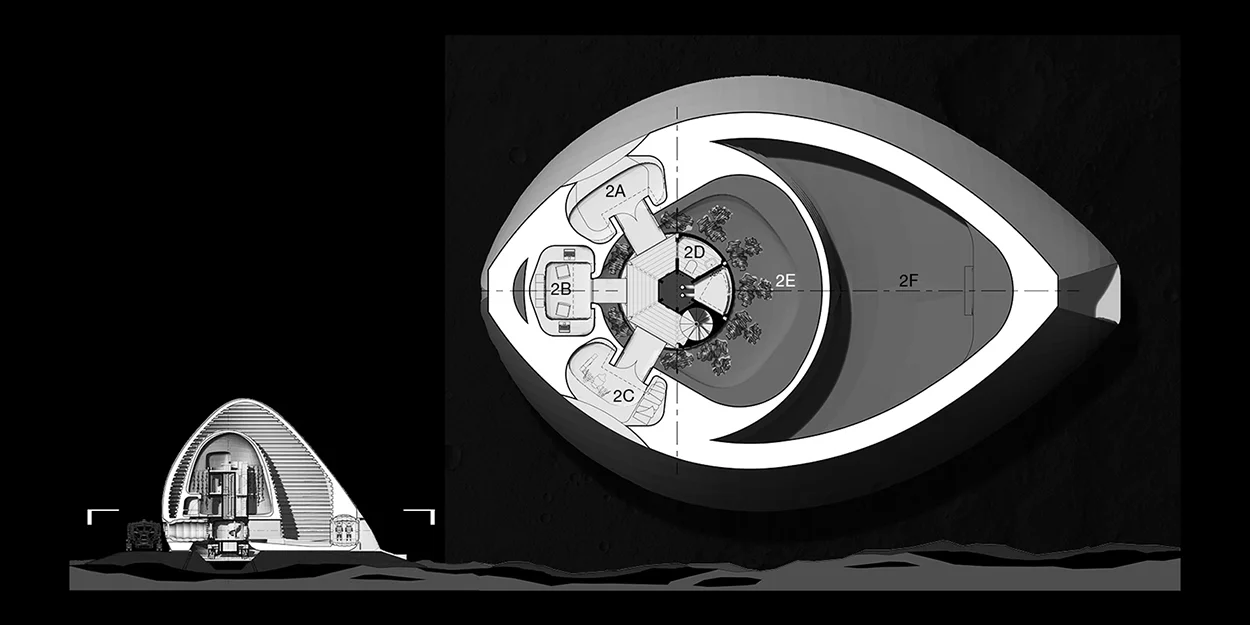

LEVEL TWO

LEVEL TWO

2A. Exercise / Medical Support (60 SF)
2B. Lab (60 SF)
2C. Library / Small Room (60 SF)
2D. Hygiene Area One
2E. Greenhouse
2F.  Intermediate Containment Zone

Oxygen Gardens

Oxygen Gardens

Between the lander core and the ICE HOUSE interior, verdant plant life surrounds the inhabitants. The vertically growing hydroponic gardens serve as the recreational ‘parks’ within the habitat, disrupting the alien monotony of Mars’ landscape while also supplementing the crew’s food and oxygen. The gardens enable the growth of experimental consumable produce, and their placement between programmatic zones offers the crew contact with natural plant life and colors throughout their daily scheduled activities. The resulting variegated “dappled” light effects benefit the crew’s psychological and mental well-being and the ‘yard’ provides space in which to vent any excess oxygen produced

LEVEL THREE

LEVEL THREE

3A. Crew (100 SF)
3B. Hygeine Area Two
3C. Greenhouse
3D. Intermediate Containment Zone

Spaces "Hollowed-Out" of Ice

Spaces "Hollowed-Out" of Ice

The interior volume of ice is printed as a series of conceptually excavated or “hollowed-out” programmatic spaces to form the walls and divisions of the habitat volume. The curvaceous rooms create an illusion of cycloramic space, enhancing perceptions of boundlessness, making a small space seem quite large.

LEVEL FOUR

LEVEL FOUR

4A. Wardroom/Gallery (120 SF)
4B. Food Prep
4C. Greenhouse
4D. Intermediate Containment Zone

ETFE Windows

ETFE Windows

Where the ice shell thins, large ETFE inflatable windows filled with radiation shielding gas further expand the perceived volume and frame views into the landscape.  Together, these features enable both  collective and private opportunities to contemplate the vista of the extraordinary Martian terrain.
